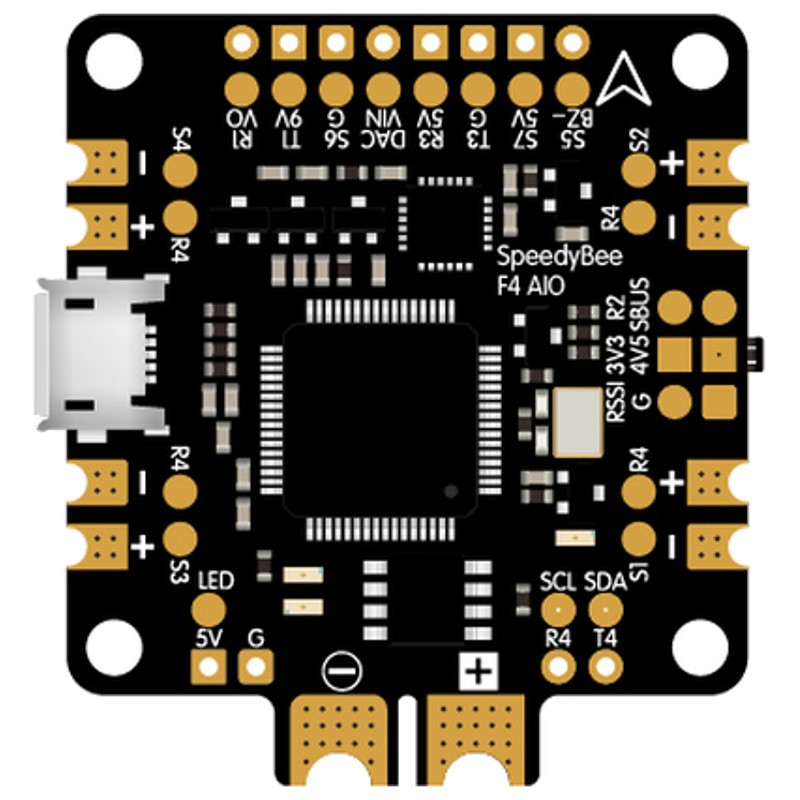

Speedy Bee F4 AIO Flight Controller
Features Speedy Bee F4 AIO Flight Controller:
- Built-in LC filter to reduce image noise.
- Integrated PDB to power external devices.
- With MPU6000 gyroscope for a more stable flight.
Technical specifications Speedy Bee F4 AIO Flight Controller:
- MCU: STM32F405
- IMU: MPU6000
- OSD: BetaFlight OSD w / AT7456E chip
- BLE: internal UART5 connection module for remote adjustment with SpeedyBee application or other similar applications
- BlackBox: 2 MB on board data
- Current sensor: 200A (302 scale)
- Power input: 3 S-6 s Lipo
- Output power: 4.5 V * 1, 3.3 V * 1, 5 V * 3, 9 V * 1
- Cam and VTX power: integrated LC-filter output for 5 V and 9 V
- ESC power output: 4 * VDC output
- UART pads: * 3 (UART1, UART3, UART4)
- UART2 for the receiver: built in RX2 inverter for SBUS input via SBUS RX2 bus pad used for PPM, DSM2, DSX, IBUS
- RSSI entry: RSSI input welding pad
- I2C for: External GPS, barometer module
- Buzzer: Buz-y 5 V pad used for 5 V Buzzer
- ESC: signal s1-s7
- LED pin: used for WS2812 LED
- Start button: Used for easy entering DFU mode
- Dimension: 36 x 39 x 7 mm
- Weight: 8.8 gr.
- 1 x Speedy Bee F4 AIO Flight Controller
- 6 x M3 * 3 + 3 Nylon Column
- 6 x M3 Nylon Nut
- 6 x M3 Anti-vibration board
- 1 x Rubycon 35V 470uf Condenser
- 1 x Manual
